TTfth Female Torque Handles

Part number: 13839
EAN Bar Code: 5060207566070
NATO number:
Accuracy: ±3%
Operates between: 4.00 - 20.00 N·m
35.00 - 180.00 lbf·in

Features
- Micrometer Scale for simple and error free setting. (On dual scale wrenches, the micrometer increment applies to the N·m scale.)
- Quick and Light Adjustment: adjustment over the entire scale can quickly be achieved and with minimal effort in approximately ten complete turns (exact number varies by model).
- Comfortable, Durable Handle: the handle is constructed using two materials; a base material for strength overlaid with a soft feel grip for comfort and slip resistance.
- The handle material and lens resist chemicals in common usage in the automotive, aviation and industrial environments.
- Supplied with a Declaration of Conformance, which meets the requirements of ISO 6789-1:2017
Technical Specifications
- Length: 214 mm
- Weight: 0.4 Kg
- Scale Increments (N·m): 0.1
- Scale Increments (lbf·in): 10
Description

Part No. 13839
TTfth20 9 x 12 mm, 4 - 20 N·m, 35 - 180 lbf·in

Part number: 13847
EAN Bar Code: 5060207566209
NATO number:
Accuracy: ±3%
Operates between: 10.00 - 50.00 N·m
8.00 - 35.00 lbf·ft

Part No. 13847
TTfth50 9 x 12 mm, 10 - 50 N·m, 8 - 35 lbf·ft

Part number: 13840
EAN Bar Code: 5060207566087
NATO number:
Accuracy: ±3%
Operates between: 4.00 - 20.00 N·m

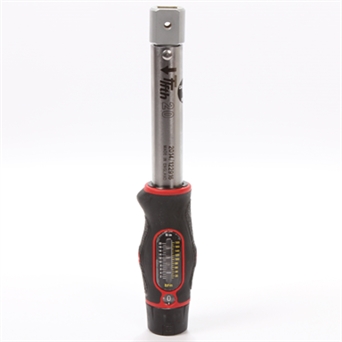

Part No. 13840
Tfth20 N·m 9 x 12 mm, 4 - 20 N·m

Part number: 13848
EAN Bar Code: 5060207566216
NATO number:
Accuracy: ±3%
Operates between: 10.00 - 50.00 N·m

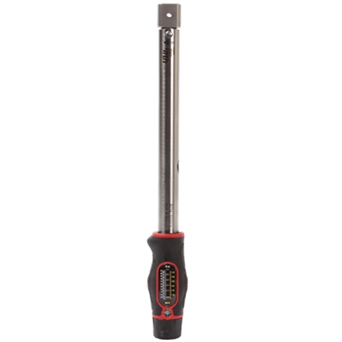

Part No. 13848
TTfth50 N·m 9 x 12 mm, 10 - 50 N·m
