PTS-119 Series

Part number: 180248.B12
EAN Bar Code: 5060207568234
NATO number:
Accuracy: ±3%
Operates between: 885.00 - 4425.00 lbf·ft
1200.00 - 6000.00 N·m

Features
- Designed to offer excellent power-to-weight ratio
- Up to 2.5kg weight saving compared with PT equivalents
- Easily accessible switch for forward and reverse operation
- ±5% repeatability of reading from 20% to 100% of range
- Air coupling designed for safety and rapid operation
- Directional exhaust barrel directs exhaust away from operator
- Replaceable square drive
- Fast operation for rapid bolt rundown. Up to 60% faster than PT-72 model
- Non impacting - low vibration levels for comfortable and safe use
- Steel reactions supplied as standard. Bespoke reactions available
- Very quiet operation - reducing the need for protection with sound pressure levels from 77dB(A) to 79dB(A)
- Supplied as standard with a traceable calibration certificate in a clockwise direction only
Technical Specifications
- Square Size: 1 ½”
- Max Air Pressure: 6.5 bar
- Tool Weight: 12.52 kg
- Reaction Plate Weight: 3.8 kg
- Free Speed: 2.6 rpm
Description

Part No. 180248.B12
PTS-119 Series, 6000 N·m

Part number: 180249.B12
EAN Bar Code: 5060207568241
NATO number:
Accuracy: ±3%
Operates between: 1030.00 - 5200.00 lbf·ft
1400.00 - 7000.00 N·m

Part No. 180249.B12

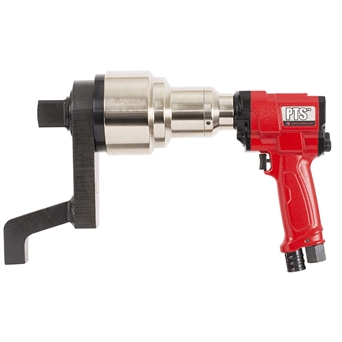

PTS-119 Series, 7000 N·m

Part number: 180248.B12.RA
EAN Bar Code:
NATO number:
Accuracy: ±3%
Operates between: 885.00 - 4425.00 lbf·ft
1200.00 - 6000.00 N·m

Part No. 180248.B12.RA
PTS-119 Series with Right Angle Gearbox, 6000 N·m

Part number: 180249.B12.RA
EAN Bar Code: 5060207569583
NATO number:
Accuracy: ±3%
Operates between: 1030.00 - 5200.00 lbf·ft
1400.00 - 7000.00 N·m

Part No. 180249.B12.RA

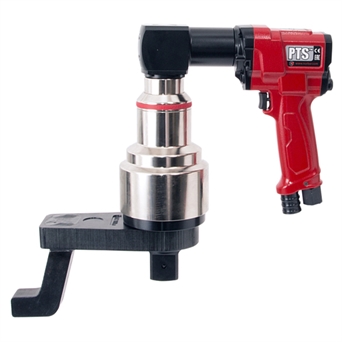

PTS-119 Series with Right Angle Gearbox, 7000 N·m

Part number: 180248.B12.DTM
EAN Bar Code:
NATO number:
Accuracy: ±3%
Operates between: 885.00 - 4425.00 lbf·ft
1200.00 - 6000.00 N·m

Part No. 180248.B12.DTM
PTS-119 Series with Dual Trigger, 6000 N·m

Part number: 180249.B12.DTM
EAN Bar Code:
NATO number:
Accuracy: ±3%
Operates between: 1030.00 - 5200.00 lbf·ft
1400.00 - 7000.00 N·m

Part No. 180249.B12.DTM

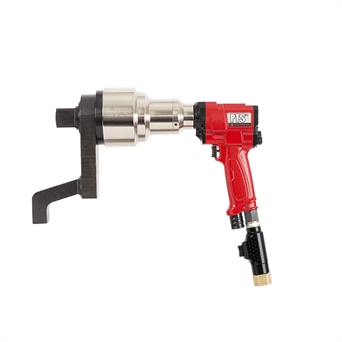

PTS-119 Series with Dual Trigger, 7000 N·m
