Tool Controllers

Part number: 28943
EAN Bar Code: 5060922234902
NATO number:
Accuracy:
Operates between:

Description

Part No. 28943
3 Way Shut-off Valve 10 BAR Maximum Air Pressure

Part No. 60309
Twin Solenoid Valve Assembly for 108 Remote Tools

Part No. 60310
Twin Solenoid Valve Assembly for 72 Remote Tools

Part number: 60244
EAN Bar Code: 5060922234810
NATO number:
Accuracy:
Operates between:

Features
- The backlit display shows an accurate reading of the torque applied and the settings for the tool controller.
- The Tool Controller has 12 sets of limits to control the power tool shut-off. Each limit has a target value and upper and lower allowances. When the lower allowance is reached the power tool to shut-off.
- The limit status is shown as LO/OK/HI on the display and with bright LED's to show 'PASS' or 'FAIL'.
- A serial port is provided for data output to a computer or printer. Options include sending limit status, time and date.
Technical Specifications
- Weight: 7.0 Kg
- Accuracy: +/-2% of reading
- Temp Range - Operating: +5°C to +40°C
- Temp Range - Storage: -20°C to +60°C
- Display Resolution: 5 Digits
Description

Part No. 60244

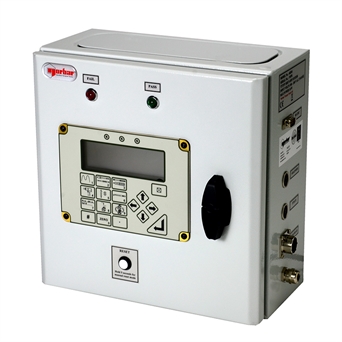

Tool Controller, Shut-Off System in Wall Box

Part number: 60254
EAN Bar Code:
NATO number:
Accuracy:
Operates between:

Part No. 60254
Tool Controller, Shut-Off System in Wall Box with Printer

Part number: 61127.600
EAN Bar Code: 5060922234827
NATO number:
Accuracy:
Operates between:

Part No. 61127.600

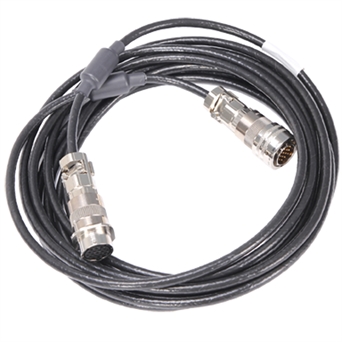

Tool Controller Lead for PTM-EC Series Tools

Part number: 61126.600
EAN Bar Code: 5060922234834
NATO number:
Accuracy:
Operates between:

Description

Part No. 61126.600
Tool Controller Transducer Lead for PT

Part number: 61128.600
EAN Bar Code: 5060922234841
NATO number:
Accuracy:
Operates between:

Description

Part No. 61128.600
Tool Controller Solenoid Lead for PT Series Tools
