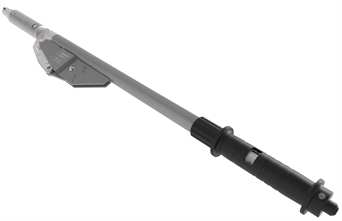

Torque Handle Production 'P' Type

Part number: 120105
EAN Bar Code: 5060207566476
NATO number:
Accuracy: ±4%
Operates between: 120.00 - 600.00 N·m
100.00 - 450.00 lbf·ft

Features
- Unique profiled cam and reaction plate - gives much clearer ' torque break point' reducing the possibility of over torqueing
- Robust construction gives accurate results to ±4% even in arduous working conditions
- Can be split and packed in two parts for a smaller, easier to transport package
- Push-through ratchet allows two direction torqueing
- Designed to be cost effectively serviced
- New handle - more comfortable and guides operator's hand to correct position
- On request ‘P’ Type wrenches can be set, marked with the setting and certified for production line applications requiring a sealed torque setting. Only if a pre-set has been requested will the tool be supplied with a Declaration of Conformance
Technical Specifications
- Weight: 6.6 Kg
Description

Part No. 120105
Industrial 3AR-N, 22 mm Spigot, Torque Handle Production 'P' Type
