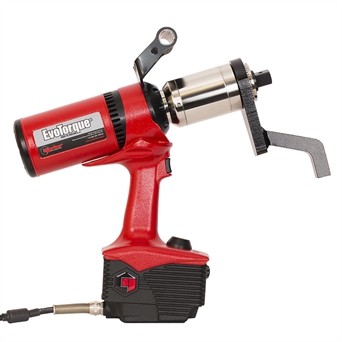

EvoTorque 2 ET2-72

Part number: 180230.B06
EAN Bar Code: 5060207567893
NATO number:
Accuracy: ±3%
Operates between: 100.00 - 1000.00 N·m
74.00 - 740.00 lbf·ft

Features
- 'Usage' counter gives the ability to see the amount of times the tool has been used since the last reset
- "Operation Direction" designed primarily for undoing bolts. When doing sequence tightening, it is now possible to undo an incorrectly tightened bolt without interrupting the sequence
- 2 Stage Tightening gives faster application of a Snug Torque & Angle Target
- "Turn Angle" option can be used to check if bolts have already been tightened in an assembly process
- Allows tool integration into third party control systems
- Maximum Audit Mode target angle increased to 720 degrees
- Ability to produce and store real time graphs via EvoLog
- 2 different lock levels, lock level 1 as per previous lock, lock level 2 will not allow user to exit the run screen or change the target
- Torque, Torque & Angle, Torque & Angle with Final Torque or Torque Audit Modes
- Each tool is supplied with a traceable calibration certificate
- For more features please see link to sales leaflet under catalogue below
Technical Specifications
- 3/4" Square Drive
- 21 rpm
- Tool Weight of 10.4kg
- Calibrated to 20% - 100% of tool's maximum capacity
- Operational targets can be set from 10% of tool capacity
- 110V
Description

Part No. 180230.B06
EvoTorque 2 ET2-72-1000-110

Part number: 180230.B06.NWR
EAN Bar Code:
NATO number:
Accuracy: ±3%
Operates between: 100.00 - 1000.00 N·m
74.00 - 740.00 lbf·ft

Part No. 180230.B06.NWR
EvoTorque 2 ET2-72-1000-110 NWR Approved

Part number: 180230.B06.PEL
EAN Bar Code:
NATO number:
Accuracy: ±3%
Operates between: 100.00 - 1000.00 N·m
74.00 - 740.00 lbf·ft

Part No. 180230.B06.PEL
EvoTorque 2 ET2-72-1000-110 with Pelicase

Part number: 180220.B06
EAN Bar Code: 5060207567978
NATO number:
Accuracy: ±3%
Operates between: 100.00 - 1000.00 N·m
74.00 - 740.00 lbf·ft

Part No. 180220.B06
EvoTorque 2 ET2-72-1000-230

Part number: 180220.B06.PEL
EAN Bar Code:
NATO number:
Accuracy: ±3%
Operates between: 100.00 - 1000.00 N·m
74.00 - 740.00 lbf·ft

Part No. 180220.B06.PEL
EvoTorque 2 ET2-72-1000-230 with Pelicase

Part number: 180231.B06
EAN Bar Code: 5060207567909
NATO number:
Accuracy: ±3%
Operates between: 135.00 - 1350.00 N·m
100.00 - 1000.00 lbf·ft

Part No. 180231.B06
EvoTorque 2 ET2-72-1350-110

Part number: 180231.B06.NWR
EAN Bar Code:
NATO number:
Accuracy: ±3%
Operates between: 135.00 - 1350.00 N·m
100.00 - 1000.00 lbf·ft

Part No. 180231.B06.NWR
EvoTorque 2 ET2-72-1350-110 NWR Approved

Part number: 180231.B06.PEL
EAN Bar Code:
NATO number:
Accuracy: ±3%
Operates between: 135.00 - 1350.00 N·m
100.00 - 1000.00 lbf·ft

Part No. 180231.B06.PEL
EvoTorque 2 ET2-72-1350-110 with Pelicase

Part number: 180221.B06
EAN Bar Code: 5060207567985
NATO number:
Accuracy: ±3%
Operates between: 135.00 - 1350.00 N·m
100.00 - 1000.00 lbf·ft

Part No. 180221.B06
EvoTorque 2 ET2-72-1350-230

Part number: 180221.B06.PEL
EAN Bar Code:
NATO number:
Accuracy: ±3%
Operates between: 135.00 - 1350.00 N·m
100.00 - 1000.00 lbf·ft

Part No. 180221.B06.PEL
EvoTorque 2 ET2-72-1350-230 with Pelicase

Part number: 180232.B08
EAN Bar Code: 5060207567916
NATO number:
Accuracy: ±3%
Operates between: 200.00 - 2000.00 N·m
148.00 - 1500.00 lbf·ft

Part No. 180232.B08
EvoTorque 2 ET2-72-2000-110

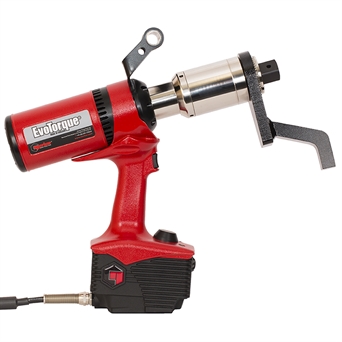

Part number: 180232.B08.NWR
EAN Bar Code:
NATO number:
Accuracy: ±3%
Operates between: 200.00 - 2000.00 N·m
148.00 - 1500.00 lbf·ft

Part No. 180232.B08.NWR
EvoTorque 2 ET2-72-2000-110 NWR Approved

Part number: 180232.B08.PEL
EAN Bar Code:
NATO number:
Accuracy: ±3%
Operates between: 200.00 - 2000.00 N·m
148.00 - 1500.00 lbf·ft

Part No. 180232.B08.PEL
EvoTorque 2 ET2-72-2000-110 with Pelicase

Part number: 180222.B08
EAN Bar Code: 5060207566230
NATO number:
Accuracy: ±3%
Operates between: 200.00 - 2000.00 N·m
148.00 - 1500.00 lbf·ft

Part No. 180222.B08
EvoTorque 2 ET2-72-2000-230

Part number: 180222.B08.PEL
EAN Bar Code:
NATO number:
Accuracy: ±3%
Operates between: 200.00 - 2000.00 N·m
148.00 - 1500.00 lbf·ft

Part No. 180222.B08.PEL
EvoTorque 2 ET2-72-2000-230 with Pelicase

Part number: 180230.B06.RA
EAN Bar Code: 5060207569170
NATO number:
Accuracy: ±3%
Operates between: 100.00 - 1000.00 N·m
74.00 - 740.00 lbf·ft

Part No. 180230.B06.RA
EvoTorque 2 with Right Angle Gearbox ET2-72-1000-110

Part number: 180220.B06.RA
EAN Bar Code: 5060207569316
NATO number:
Accuracy: ±3%
Operates between: 100.00 - 1000.00 N·m
74.00 - 740.00 lbf·ft

Part No. 180220.B06.RA
EvoTorque 2 with Right Angle Gearbox ET2-72-1000-230

Part number: 180231.B06.RA
EAN Bar Code: 5060207569262
NATO number:
Accuracy: ±3%
Operates between: 270.00 - 1350.00 N·m
200.00 - 1000.00 lbf·ft

Part No. 180231.B06.RA
EvoTorque 2 with Right Angle Gearbox ET2-72-1350-110

Part number: 180221.B06.RA
EAN Bar Code: 5060207569323
NATO number:
Accuracy: ±3%
Operates between: 270.00 - 1350.00 N·m
200.00 - 1000.00 lbf·ft

Part No. 180221.B06.RA
EvoTorque 2 with Right Angle Gearbox ET2-72-1350-230

Part number: 180232.B08.RA
EAN Bar Code: 5060207569279
NATO number:
Accuracy: ±3%
Operates between: 400.00 - 2000.00 N·m
295.00 - 1475.00 lbf·ft

Part No. 180232.B08.RA
EvoTorque 2 with Right Angle Gearbox ET2-72-2000-110

Part number: 180222.B08.RA
EAN Bar Code: 5060207569330
NATO number:
Accuracy: ±3%
Operates between: 400.00 - 2000.00 N·m
295.00 - 1475.00 lbf·ft
