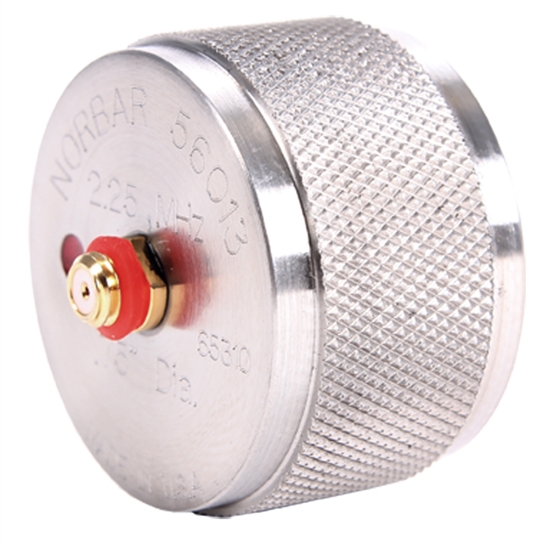

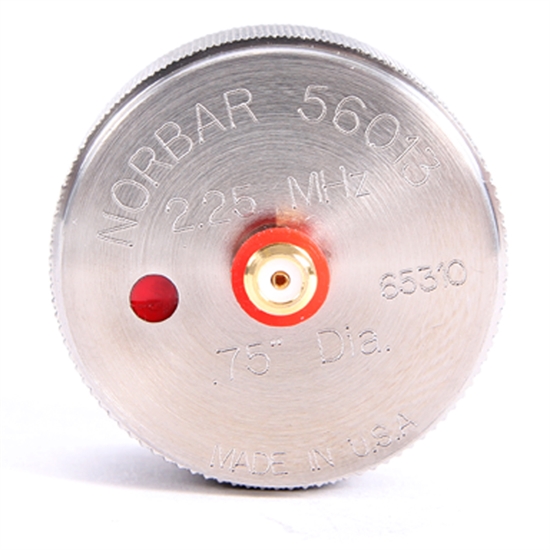

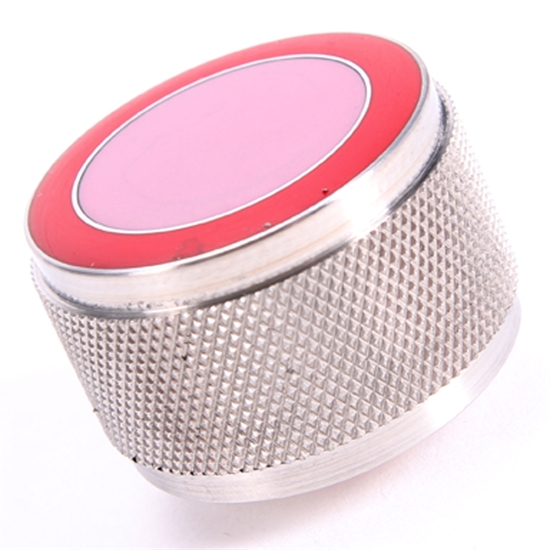

Magnetic Transducers – This standard style is used with ferrous materials, and consists of a rare earth magnet surrounding the piezo electric transducer. The diameter refers to the nominal diameter of the piezo electric crystal. The annular magnet increases the overall diameter to that shown as 'Diameter A'. High temperature versions are available on request.
- Part number:
56013
- EAN Bar Code:
5060922235534
- NATO number:
-
- Accuracy:
-
- Operates between:
Compare Products
Please select further products to compare.
- Technical Specifications
-
Temperature Range: -20°C to +65°C (0°F to 150°F)
-
Diameter: 3/4"
-
Frequency: 2.25 MHz
-
Diameter 'A': 30.7 mm
-
Height: 19.1 mm
