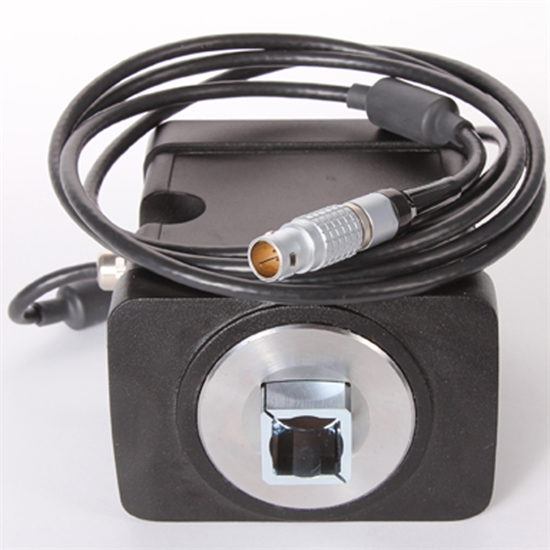

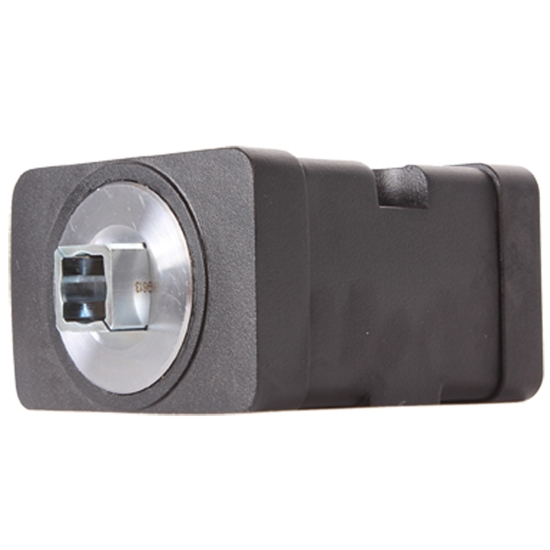

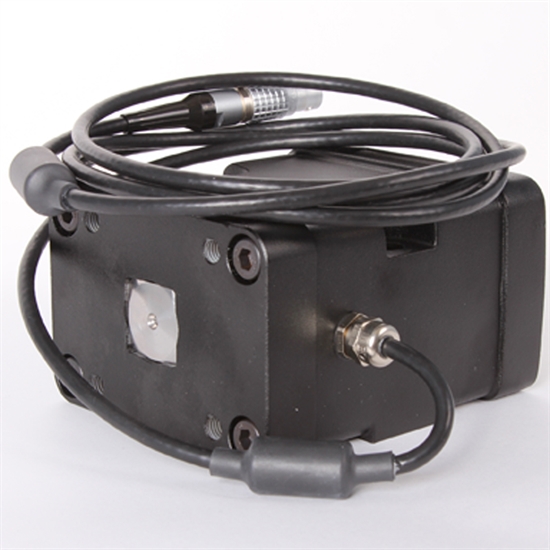

(Obsolete) 'SMART' STB, 3000 N.m; mV/V

STB Transducers were originally used with Norbar's "TWA" measurement system. The TWA instrument is no longer available but the transducers have been upgraded to the new generation 'SMART' type.

Part number: 50684.IND
EAN Bar Code: -
NATO number: -
Accuracy: See Text
Operates between:
150.00 - 3000.00 N·m

  • 'SMART' - TST, TTT, TTL-HE and T-Box instruments will automatically recognise calibration details.
  • Supplied with UKAS calibration certificate.
  • Accuracy: Class 1 for the primary classification range (+/-0.5% of reading).

  • Weight: 4.34 Kg
  • Temp Range Operating: -10°C to +50°C
  • Temp Range Storage: -20°C to +70°C
  • Thermal Effect On Span: < +/- 0.03%/°C
  • Thermal Effect On Zero: < +/- 0.01%/°C
  • Torsional Deflection: < 1°
  • Fatigue: > 10 exp 7 cycles
  • Maximum Torsion Capacity: 100%
  • Connector: Lemo®
  • Drive 1: 1"
  • Drive 2: 3/4"
