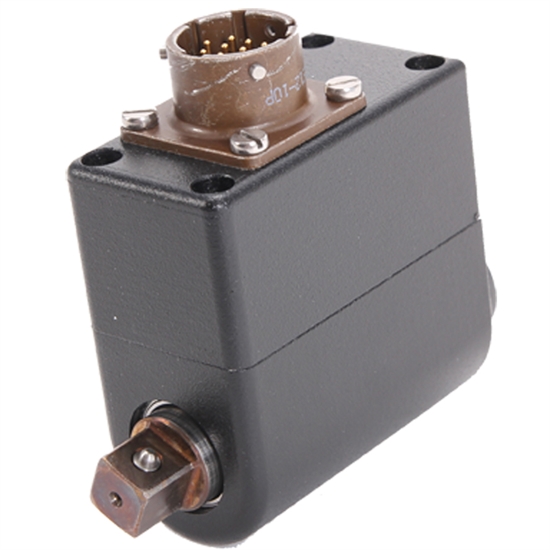

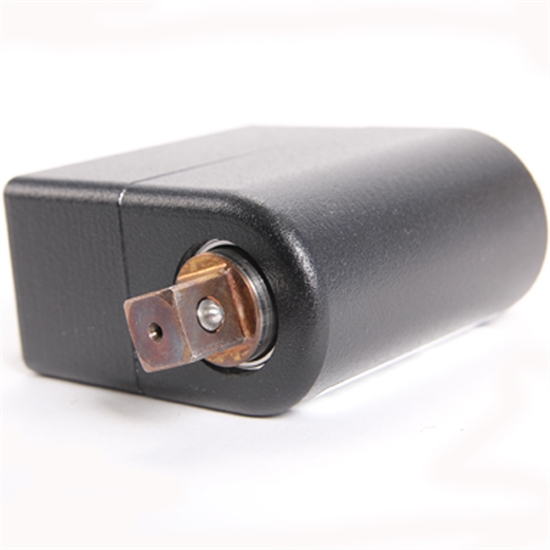

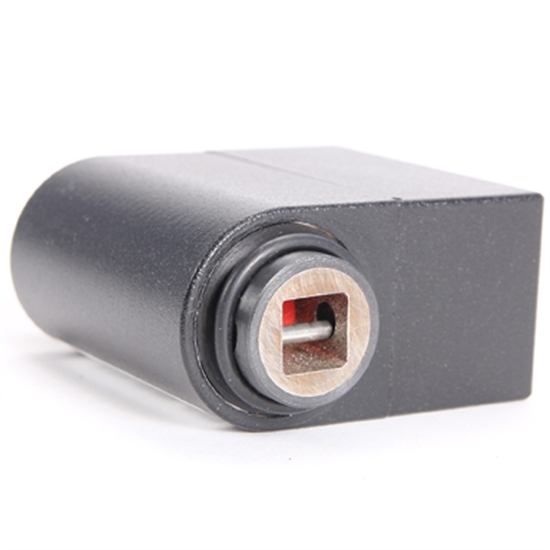

Rotary transducers are designed to measure the torque from continuously rotating shafts. This new range offers an additional model of 5 N·m capacity and class leading performance with impulse tools and will be supplied with a UKAS calibration certificate from Norbar's laboratory. These transducers are known as 'SMART' transducers. They have built-in intelligence in the form of a memory circuit which contains essential information about the transducer which can be read by the appropriate type of instrument (TST, TTT, TTL-HE & T-Box ), thus reducing set-up time. They will also work with instruments that cannot read the memory information, by inputting the relevant calibration details manually.
- Part number:
50711.LOG
- EAN Bar Code:
5060922232694
- NATO number:
-
- Accuracy:
±0.5%
- Operates between:
3.70 -
75.00
N·m
Compare Products
Please select further products to compare.
- Features
-
Classified to BS7882:2017, typically better than Class 1 for the primary classification range (±0.5% of reading).
-
Calibration from 5% to 100% of capacity.
-

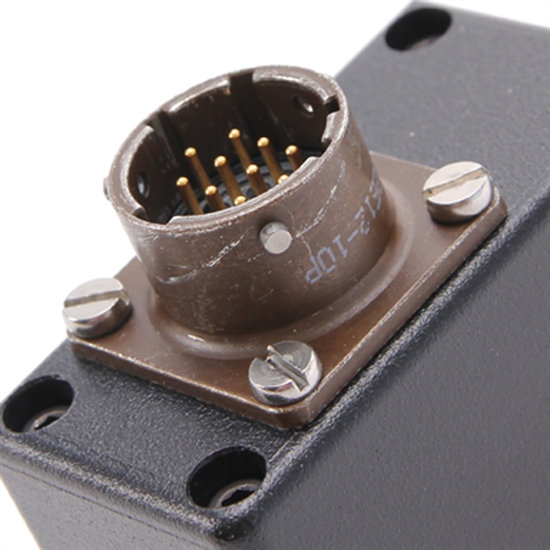

Fitted with 10 pin Military Connector AB05-2100-12-10PN-59
-
Angle measurement models also available, please consult Norbar for technical details and availability.
- Technical Specifications
-
Weight: 0.235 Kg
-
Temp Range Operating: -10°C to +50°C
-
Temp Range Storage: -20°C to +70°C
-
Thermal Effect On Span: < +/- 0.03%/°C
-
Thermal Effect On Zero: < +/- 0.01%/°C
-
Torsional Deflection: < 1°
-
Fatigue: > 10 exp 7 cycles
-
Max Torsion Capacity: 150%
-
Maximum RPM - Continuous: 5000
-
Maximum RPM - Intermittent: 11000
