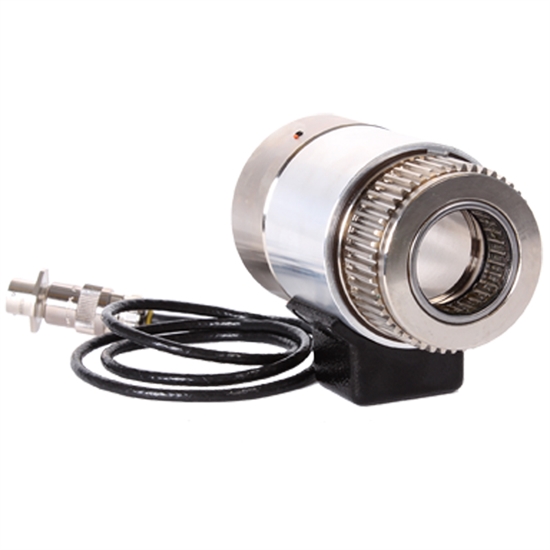

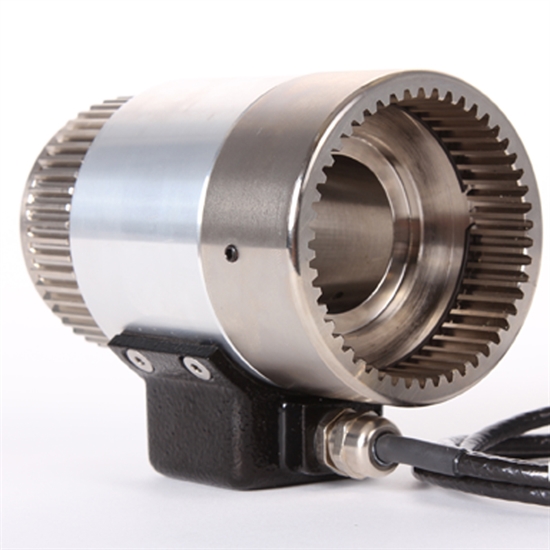

These Annular transducers are designed to fit directly to Norbar gearboxes in the '1500 Series' range (PneuTorque and HandTorque) and will accurately measure the torque output via a display instrument.
- Part number:
50668.LOG
- EAN Bar Code:
5060922233844
- NATO number:
-
- Accuracy:
±0.5%
- Operates between:
200.00 -
2000.00
N·m
Compare Products
Please select further products to compare.
- Features
-
Designed to ignore non torsional forces.
-
Classified to BS7882:2017, typically better than Class 1 for the primary classification range (±0.5% of reading).
-
Robust heat treated alloy steel torsion tube design.
-
Incorporates slip rings to ensure that the cable will not wrap around the tool during operation (not included in transducers for 'Remote' tools or Handtorque).
-
'SMART' transducers can also be used with many instruments not of Norbar manufacture. However, these will operate as normal ratio calibrated (mV/V) transducers - the 'SMART' data will not be read. For non Norbar instruments or for when a mV/V certificate is required, use part code suffix '.IND'.
- Technical Specifications
-
Weight: 1.5 Kg
-
Type: 72 diameter series
-
Temp Range Operating: -10°C to +50°C
-
Temp Range Storage: -20°C to +70°C
-
Thermal Effect On Span: < +/- 0.03%/°C
-
Thermal Effect On Zero: < +/- 0.01%/°C
-
Max Torsion Of Capacity: 110% of rated torque
-
Torsional Deflection: < 1°
-
Fatigue: > 10 exp 7 cycles
