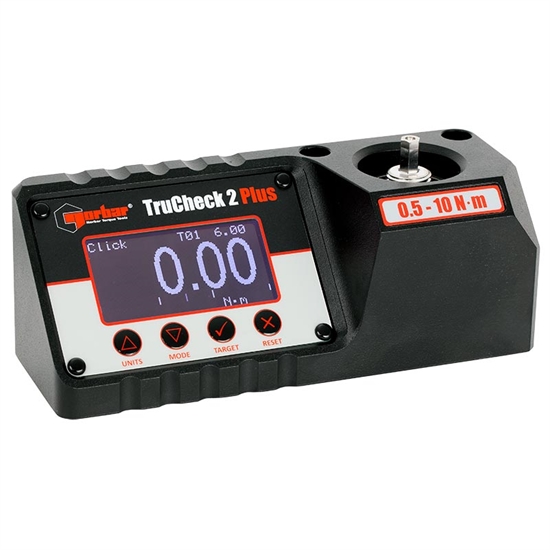

TruCheck™ 2 is a cost effective torque wrench checker that has been redesigned to incorporate improved features whilst maintaining ease of use.
The TruCheck™ 2 aims to cut the cost of purchasing a torque wrench checking system and remove the reservations over the complexity of using such equipment.
- Part number:
43517
- EAN Bar Code:
5060207566650
- NATO number:
-
- Accuracy:
-
- Operates between:
0.50 -
10.00
N·m
Compare Products
Please select further products to compare.
- Features
-
Allows torque tool performance to be monitored and tools kept in peak condition.
-
Allows a selection of torque units, three modes of operation (Click, Dial and Track), the ability to store up to 15 targets and select from 12 languages
-
Allows operator to set a target value and tolerance
-
Inbuilt Micro USB 2.0 port enables power from any USB power source. Plus versions allows for both power and data transfer simultaneously
-
Supplied with a 1/4" male hexagon and 1/4" female square drive adapter
-
If you order a UKAS accredited calibration certificate (available at extra cost) this certificate will be provided in place of the traceable calibration certificate
-
Software can be updated remotely, without the need to return the product to Norbar
-
Supplied with traceable calibration certificate in clockwise direction. A counter-clockwise calibration is available at additional cost
- Technical Specifications
-
Weight: 1.4 kg
-
Accuracy: ±1% reading accuracy (±2% when below 10% of range for the 10 N·m TruCheck™ 2 model)
-
Display: LCD Display
-
Temp Range - Operating: 0°C to +50°C
-
Temp Range - Storage: -20°C to +70°C
-
Auto Reset Hold Time: 1,2 or 3 seconds
-
Power Consumption: 0.5W
-
Environment: IP 40
-
Electromagnetic Compatibility (EMC) Directive: Designed to comply with EN 61326-1
-
Requires two Hexagon Socket Head Cap Screws ISO 4762 - M10 - 12.9 to fix in position (not included)
- Dimensions & Weights
- Tool Weight (kg): 5.00
- Packed Weight* (kg): 5.50
- Packed Width* (W) (mm): 620.00
- Packed Height* (H) (mm): 520.00
- Packed Depth* (D) (mm): 270.00
* Estimated
