The T-Box™ 2 utilises its powerful processor to provide a seamless and complete torque data collection package. This is capable of tool calibrations, data logging, simultaneous transducer connections and archiving to your PC. With its advanced features, T-Box™ 2 is designed to facilitate and enhance torque tool calibrations, making it highly compatible with the requirements set forth in ISO 6789-2017, which specifies the requirements for the calibration, design, and performance of hand-operated torque tools.
- Part number:
43542
- EAN Bar Code:
5060922231246
- NATO number:
-
- Accuracy:
-
- Operates between:
Compare Products
Please select further products to compare.
- Features
-

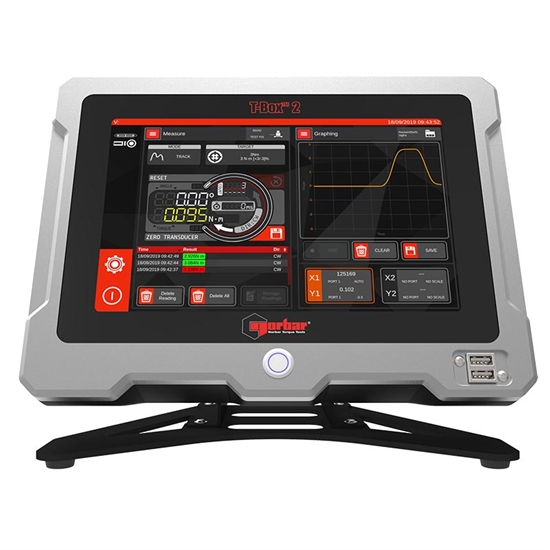

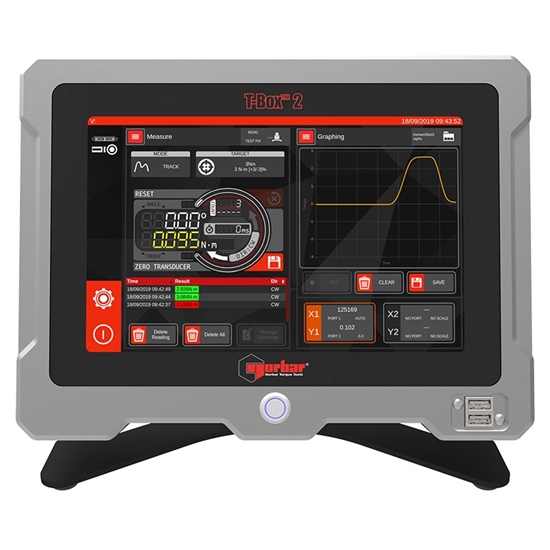

Features a 10.1" multi-touch screen display with on-screen graphic icons for simple and easy tool navigation and selection
-
User configurable to allow a selection of torque, torque and angle, rate targets and the ability to set thresholds
-
Two task windows allows simultaneous working! Measure against a target while graphing the cycle, take readings from two transducers simultaneously, capture two different graphs at the same time or manage and review readings s they are captured
-
Ability to network via USB Adapter
-
Continuous output of up to 100 readings per second per port via RS-232 or USB virtual serial device
-
Includes 6 modes for torque tool measurement: Track, Click, Dial & Electronic, Stall, Screwdriver and Hydraulic
-
Can export readings and graphs to CSV and JSON format allowing for 3rd party software integration
-
File browser / manager for internal storage and USB management giving the user greater ease and flexibility in managing multiple files and folders
-
2 transducer ports gives you the ability to perform two tasks simultaneously e.g. graphing and measuring
-
Fast CPU frequency up to 2.3 GHz
-
Large capacity memory of 120GB SSD storage
-
The T-Box™ 2 can capture graphs up to 325 Hz, offering the ability to analyse fast moving transients
-
4GB RAM allows for smooth and seamless operation
-
Ability to predefine multiple targets
-
Features hardened and impact resistant glass helping to prevent chips and scratches appearing on the screen’s surface
-
Ability to precisely control and monitor the application of torque, ensuring that the rate-of-rise complies with the standards specified in ISO 6789-2017
- Technical Specifications
-
Weight: 5.2 Kg
-
Bench stand supplied as standard with an adjustable viewing angle
-
2 independently configurable ancillary ports
-
1 RS-232 Serial Port
-
2 USB Ports
-
Accuracy of ±0.05% of reading (±0.1% when below 5% of transducer capacity)
-

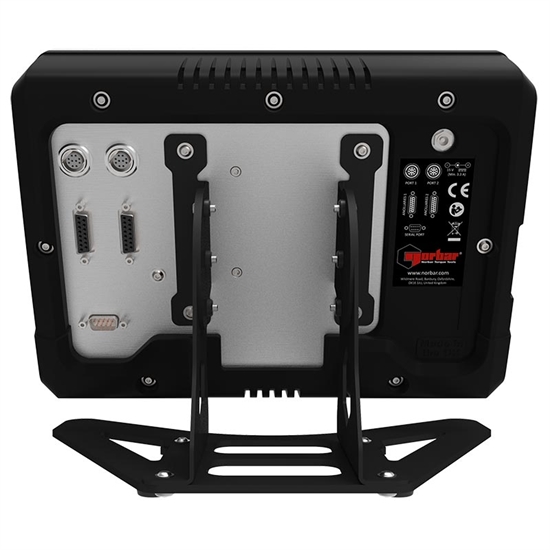

Rear panel features 100 mm x 100 mm VESA mounting holes, allowing for easy wall mounting or the use of third party stands / arms
