'SMART' Annular TD, 4500 N·m, for HT/ET/PTM-119, 1 1/2" sq. dr.; for TST, TTT or Pro-Log

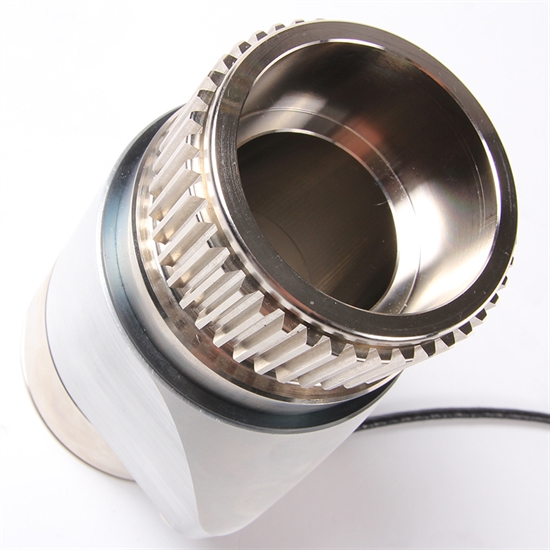

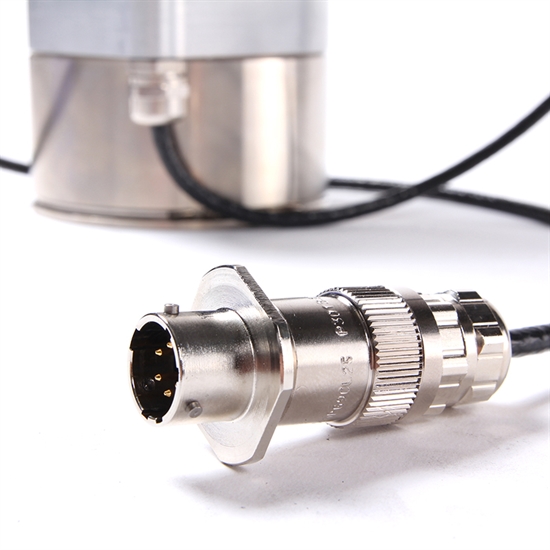

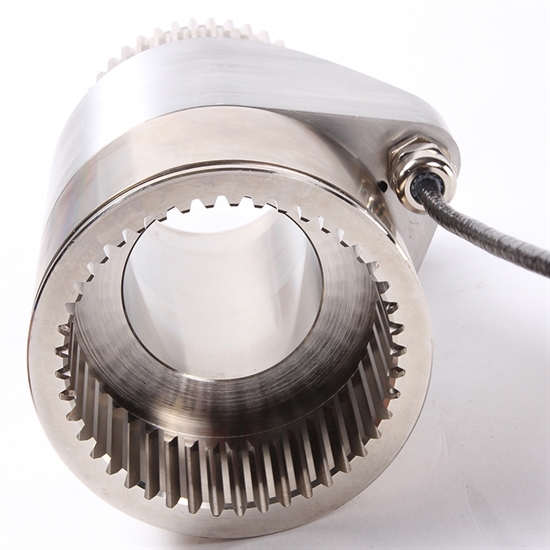

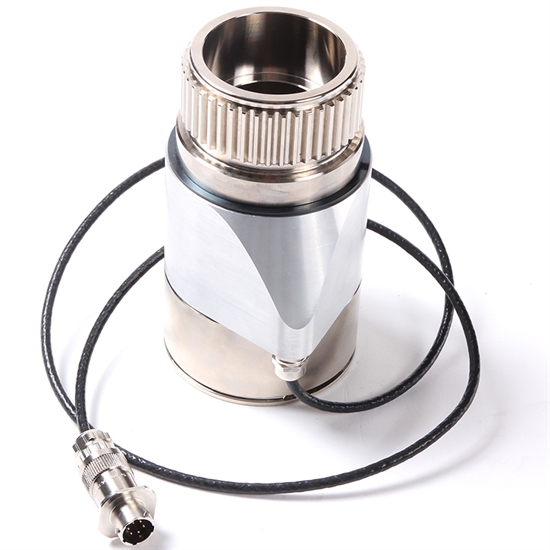

This Annular transducer has been designed to fit directly to the Handtorque, EvoTorque and PneuTorque 92 diameter tools and will accurately measure the torque output via a display instrument.

Standard calibration is performed loading counter clockwise only.

Part number: 50755.LOG
EAN Bar Code: -
NATO number: -
Accuracy: ±0.5%
Operates between:
450.00 - 4500.00 N·m

  • Robust, heat treated, alloy steel torsion shaft design.
  • Designed to ignore non torsional forces.
  • 'SMART' transducers can also be used with many instruments not of Norbar manufacture. However, these will operate as normal ratio calibrated (mV/V) transducers - the 'SMART' data will not be read. For non Norbar instruments or for when a mV/V certificate is required, use part code suffix '.IND'.

  • Temp Range Operating: -10°C to +50°C
  • Temp Range Storage: -20°C to +70°C
  • Thermal Effect On Span: < +/- 0.03%/°C
  • Thermal Effect On Zero: < +/- 0.01%/°C
  • Max Torsion Of Capacity: 150% of rated torque
  • Torsional Deflection: < 1°
  • Fatigue: > 10 exp 7 cycles
  • Square Drive: 1 1/2"
