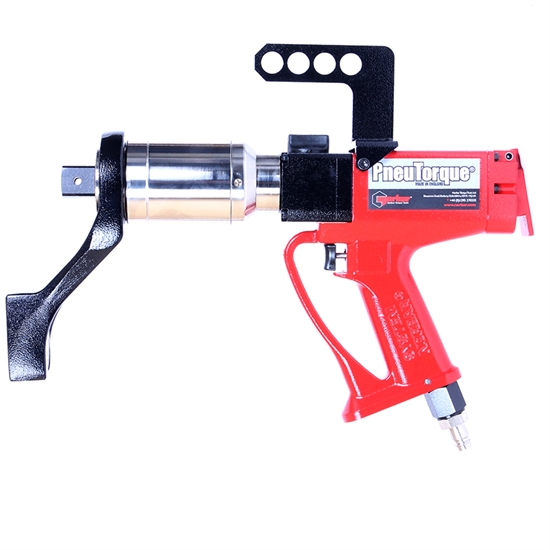

(Obsolete) PTM-72-1350-B-DT, 1350 N·m, Bi-Directional, Stall, Dual Trigger, 1"

This PTM-72 tool has a second trigger located on the back plate which requires the operator to use both hands to operate the tool, therefore reducing the risk of the operator's hands becoming trapped between the reaction bar and the reaction point.

The twin motor concept of this tool gives the benefit of high run-down speeds while adding very little to the size and weight of the tool.

Part number: 18103.B08.DT
EAN Bar Code: -
NATO number: -
Accuracy: ±5%
Operates between:
270.00 - 1350.00 N·m
200.00 - 1000.00 lbf·ft

  • Quiet - less than 85 dB(A) when under load.
  • Non impacting - low vibration levels make these tools comfortable and safe to use.
  • Square drive is quickly and easily replaceable.
  • 'Soft Start' trigger controls / aids socket location and allows gradual and safe reaction location.
  • For safety, gearbox can rotate independently from the handle so that reaction forces are not transmitted back to the operator.

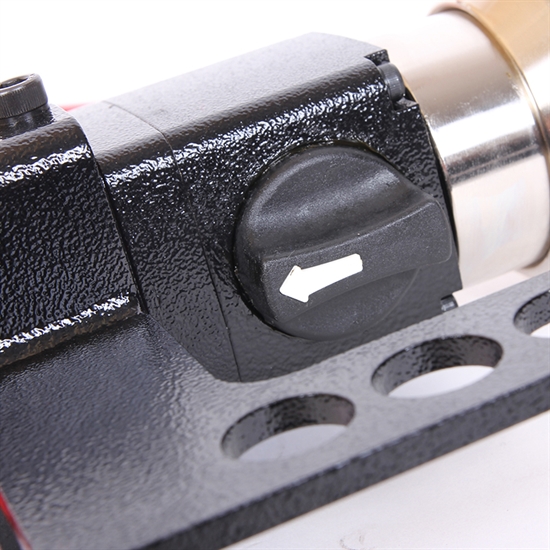

  • On Bi-Directional tools, the direction control knob is locked while the tool is running to prevent accidental damage to the gearbox.
  • 1" square drive available for the 1000 N·m version, Part No. 18492.

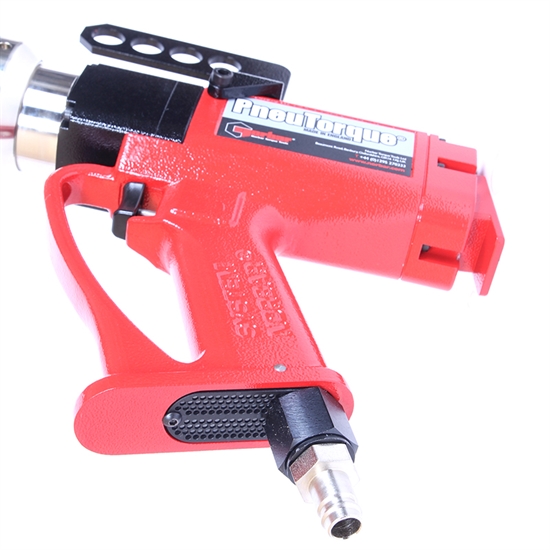

  • Dual Trigger requires both hands to be used to operate the tool, for increased health and safety.

  • Square Size: 1"
  • Max Air Pressure: 6.3 bar
  • Air Consumption: 19 litres/sec (40 CFM)
  • Tool Weight: 6.25 Kg
  • Reaction Plate Weight: 0.7 Kg
  • Free Speed: 86 rpm
