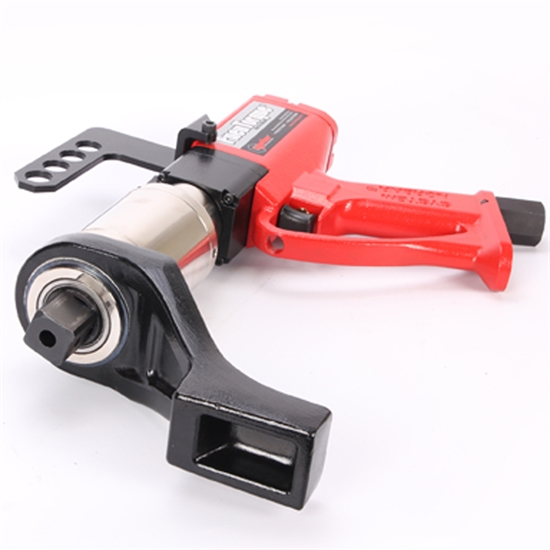

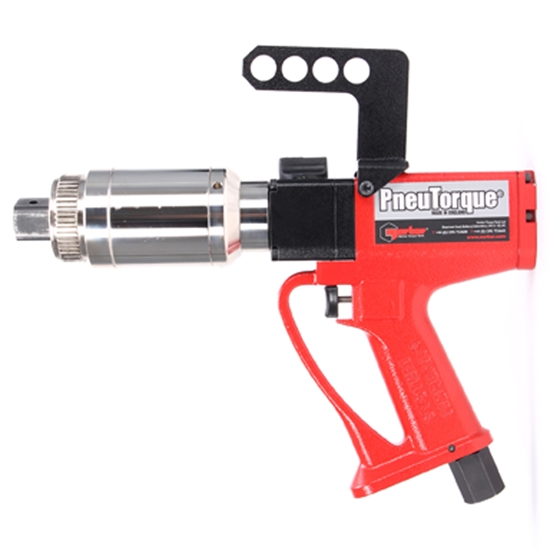

PTM-72 tools use the same 'twin motor' handle as the PTM-52 but fitted with a durable 72mm gearbox to allow higher torque outputs. The 'twin motor' concept gives the benefit of high run-down speeds while adding very little to the size and weight of the tool.
Also available as Internal and External Control, Shut-Off tools.
- Part number:
18103.B08
- EAN Bar Code:
5060207568593
- NATO number:
-
- Accuracy:
±5%
- Operates between:
200.00 -
1000.00
lbf·ft
270.00 -
1350.00
N·m
Compare Products
Please select further products to compare.
- Features
-
Quiet : Noise level : 84dB(A), with an uncertainty K = 3dB, when free-running
-
Non impacting - low vibration levels make these tools comfortable and safe to use.
-

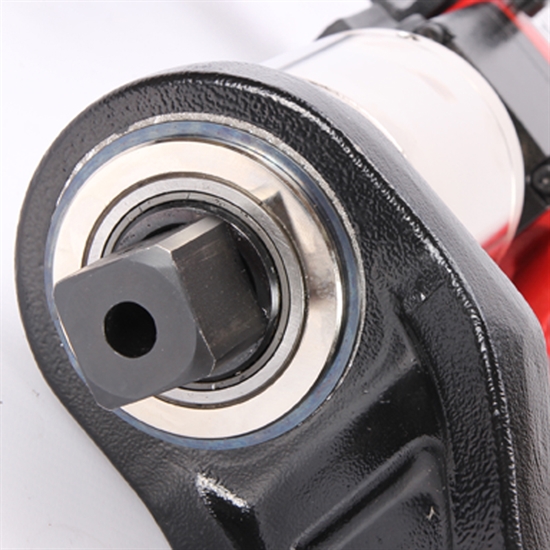

Square drive is quickly and easily replaceable.
-
'Soft Start' trigger controls / aids socket location and allows gradual and safe reaction location.
-
For safety, gearbox can rotate independently from the handle so that reaction forces are not transmitted back to the operator.
-
Light weight - single direction 2000 N·m stall tool weighs just 6.2 kg.
-
On Bi-Directional tools, the direction control knob is locked while the tool is running to prevent accidental damage to the gearbox.
-
Fast - 1000 N·m version has a free speed of 140 rpm for rapid bolt run-down.
-
1" square drive available for the 1000 N·m version, Part No. 18492.
- Technical Specifications
-
Square Size: 1"
-
Max Air Pressure: 6.3 bar
-
Air Consumption: 19 litres/sec (40 CFM)
-
Tool Weight: 6.1 kg
-
Reaction Plate Weight: 0.7 kg
-
Free Speed: 86 rpm
