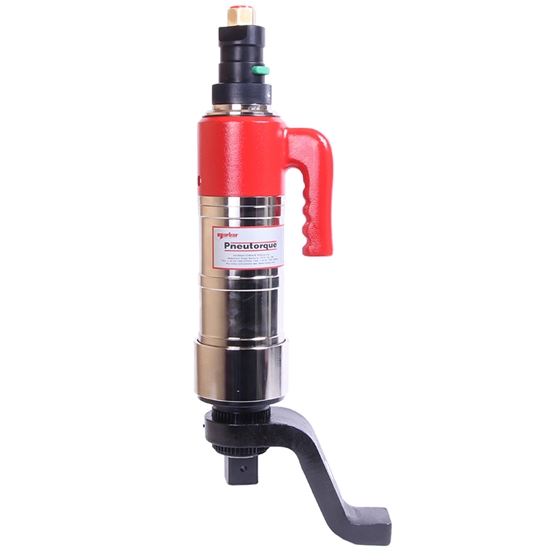

(Obsolete) PT5500.AUT, 1 1/2"

These 'PneuTorque' models share the same features as the 'Standard' series, but have a higher torque output for a given gearbox diameter. Automatic Two Speed Models offer all of the advantages of single speed versions but with the additional benefit of a run down speed five times greater than the final torque speed. Because the Automatic gearbox changes without having to stop the tool, the tightening cycle can be completed faster. Part number: 18028.AUT
EAN Bar Code: -
NATO number: -
Accuracy: ±5%
Operates between:
1300.00 - 4000.00 lbf·ft
1762.00 - 5500.00 N·m
176.00 - 550.00 kgf·m

  • Electronic torque transducers can be fitted for precise torque monitoring.
  • Reaction foot can slide on the spline to allow for sockets of various lengths.
  • Reduced diameter allows improved access.
  • High torque output - up to 5500 N·m.
  • Reversible - Pneutorques can be used for tightening and untightening.

  • Square Size: 1 1/2"
  • Max Air Pressure: 4.9 bar
  • Vel Ratio Low Speed: 1590.322:1
  • Vel Ratio High Speed: 291.559:1
  • Free Run Low Speed: 2.5 revs/min
  • Free Run High Speed: 12.5 revs/min
  • Air Consumption: 19 litres/sec
  • Tool Weight: 21.4 Kg
  • Reac Plate Weight: 4 Kg
