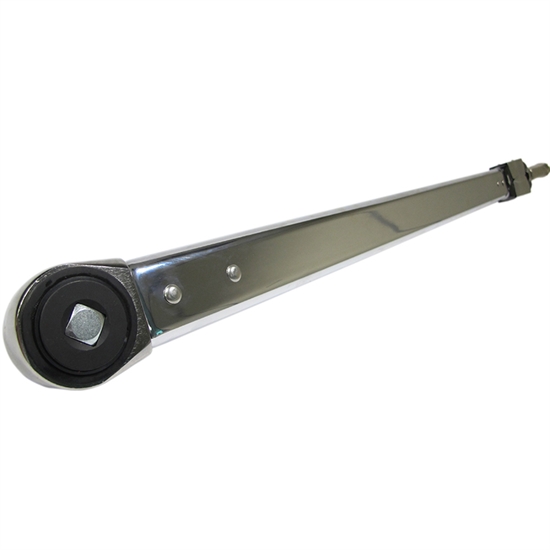

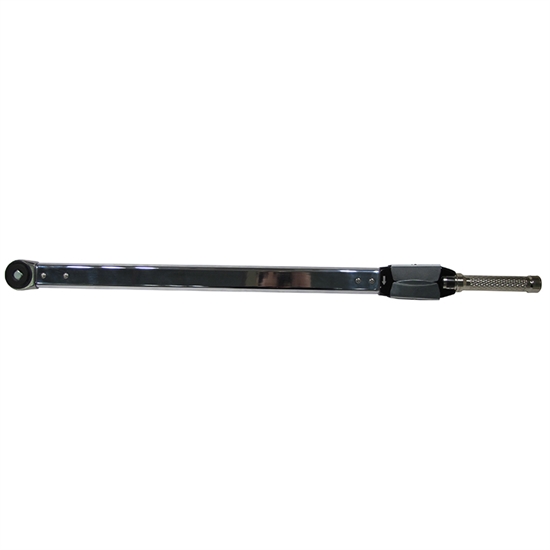

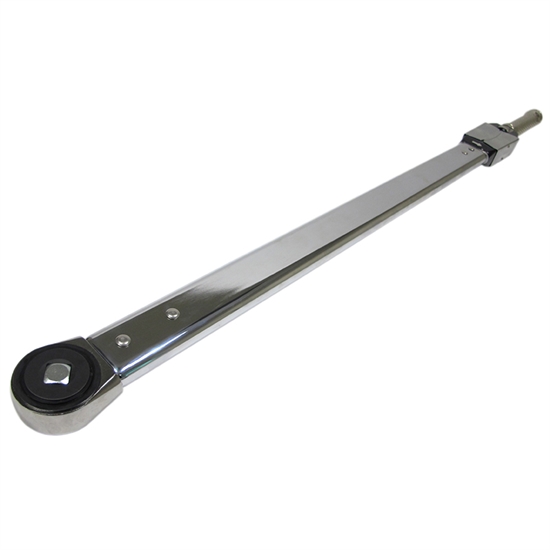

'P' Type Torque Wrenches are designed for the production environment where they will be set and then dedicated to a particular application. There is no scale, the wrench must be set against a Pro-Test or similar instrument.
- Part number:
14007
- EAN Bar Code:
5060207562928
- NATO number:
-
- Accuracy:
±3%
- Operates between:
2600.00 -
9000.00
lbf·in
220.00 -
750.00
lbf·ft
300.00 -
1000.00
N·m
Compare Products
Please select further products to compare.
- Features
-

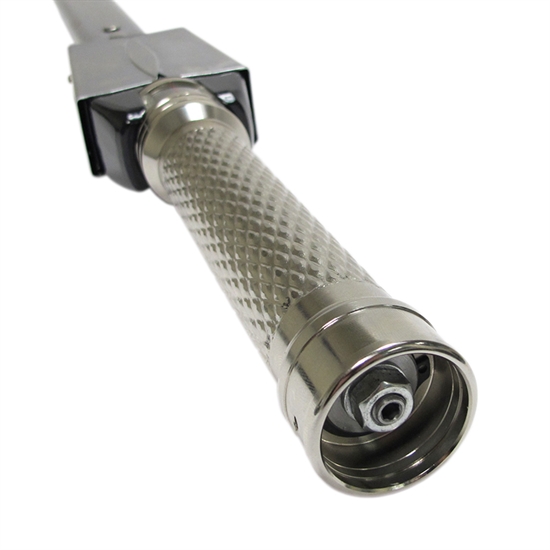

Non length dependent. Extension handle (weighs additional 1.7kg) can be used to reduce operator effort (handle supplied as standard with Model 800, 1000 and 1500)
-
Positive 'click' can be heard seen and felt.
-
Low weight - Model 1000 just 5.8 kg.
-

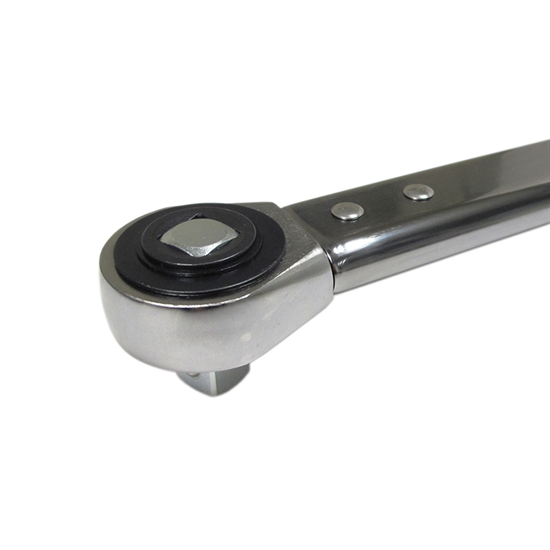

Fine 60 tooth ratchet allows the wrench to be used in confined areas.
-
Supplied in a high quality blow moulded plastic case, with space provided for accessories such as sockets.
-
On request ‘P’ Type wrenches can be set, marked with the setting and certified for production line applications requiring a sealed torque setting. Only if a pre-set has been requested will the tool be supplied with a Declaration of Conformance
- Technical Specifications
-
Length: 1250 mm
-
Square Size: 3/4"
-
Torque Radius: 1098 mm
-
Weight: 5.7 Kg
-
Ratchet Teeth: 60
-
Ratchet Type: push-through
-
Length (inc. Ext. Handle): 1750 mm
