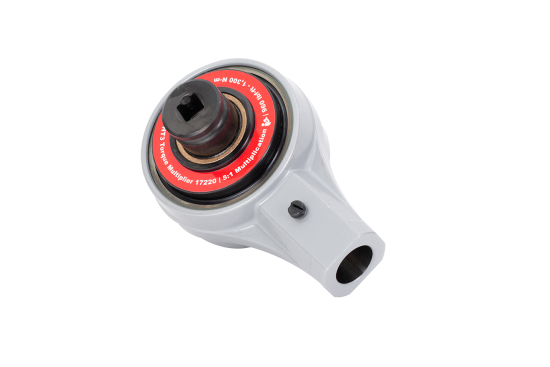

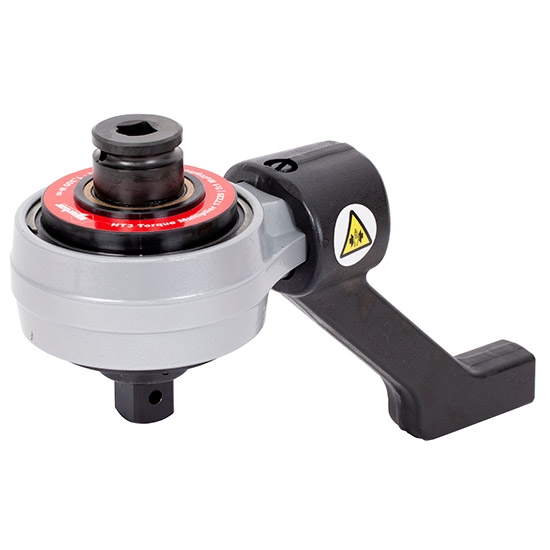

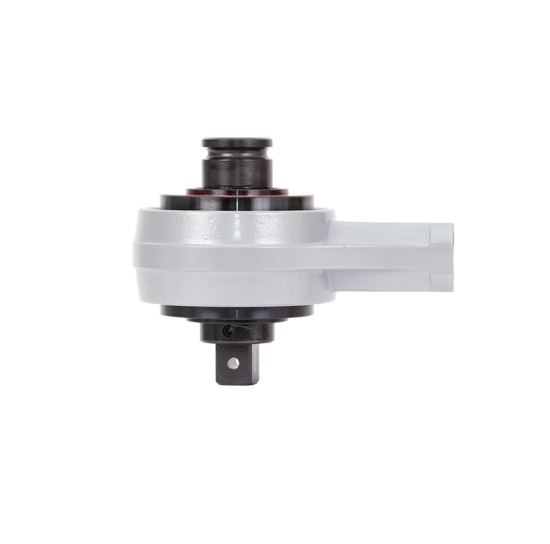

The 'Highwayman' torque multiplier has been designed for use where it is necessary to provide higher torques than would otherwise be possible due to limitations of space or operator strength. Input to the multiplier is via a ratchet torque wrench set to one fifth of the desired output torque.
- Part number:
17218
- EAN Bar Code:
-
- NATO number:
5120-99-356-4384
- Accuracy:
±4%
- Operates between:
96.00 -
960.00
lbf·ft
130.00 -
1300.00
N·m
13.00 -
130.00
kgf·m
Compare Products
Please select further products to compare.
- Features
-
5:1 torque multiplication, accuracy guaranteed better than ±4%.
-
Robust construction means minimal maintenance and long life.
-
If calibration is required, a UKAS accredited calibration certificate may be ordered (at extra cost)
- Technical Specifications
-
Tool Weight: 3.8 Kg
-
Multiplication Ratio: 5:1
-
Output Square: 3/4"
-
Input Square: 1/2"
-
Velocity Ratio: 5.333:1
-
No reaction plate: 0
