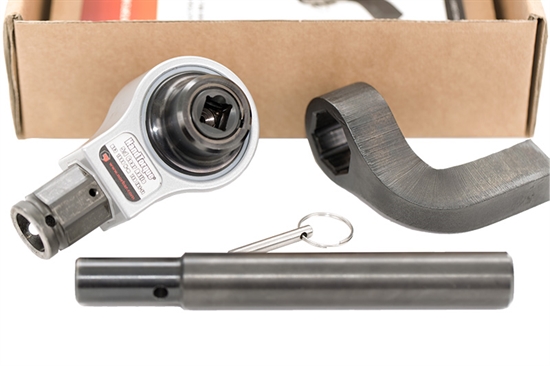

HT3-1000

The HandTorque­® HT3-1000 has been designed for use where it is necessary to provide higher torques than would otherwise be possible due to limitations of space or operator strength. Input to the multiplier is via a ratchet torque wrench set to one fifth of the desired output torque. Part number: 180260
EAN Bar Code: 5060207565141
NATO number: -
Accuracy: ±4%
Operates between:
100.00 - 1000.00 N·m
74.00 - 738.00 lbf·ft



  • Quick change cranked reaction with improved flexibility allowing reaction in 8 orientations
  • Robust construction means minimal maintenance and long life
  • Small and compact design
  • Supplied with 2 reaction bar styles for maximum versatility

  • Tool Weight: 2.7 Kg
  • Output Square: 3/4"
  • Input Square: 1/2"
  • Reaction Plate Weight: 0.5 Kg cranked / 0.69 Kg straight
  • 5:1 nominal torque multiplication reaction dependant. Ratio with cranked foot is 4.8:1; with straight reaction being 4.9:1
