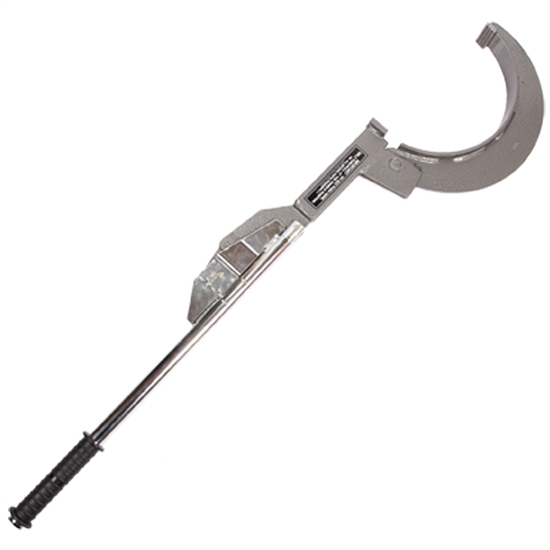

The correct tightening of carbon/graphite electrodes is known to increase the energy efficiency of electric arc furnaces and prevents electrode sections from being lost in the furnace. Norbar Electrode Wrenches are based on two well proven torque wrench designs: electrodes up to 8 inches use the 'Professional' type, 9 inches and upwards are based on the 'Industrial' wrench.
- Part number:
12531
- EAN Bar Code:
5060922230065
- NATO number:
-
- Accuracy:
±4%
- Operates between:
150.00 -
575.00
lbf·ft
205.00 -
780.00
N·m
Compare Products
Please select further products to compare.
- Features
-
Unmistakable signal when set torque is reached.
-
Positive torque control increases energy efficiency.
-
Self-clamping action speeds the tightening operation.
-
A wide range of electrode sizes, 3 to 24 inches, can be tightened.
-
Supplied with a Declaration of Conformance, which meets the requirements of ISO 6789-1:2017
- Technical Specifications
-
Torque Radius: 990 mm
-
Weight: 8.4 Kg
-
Electrode Diameter: 12"
-
Overall Length: 1280 mm
