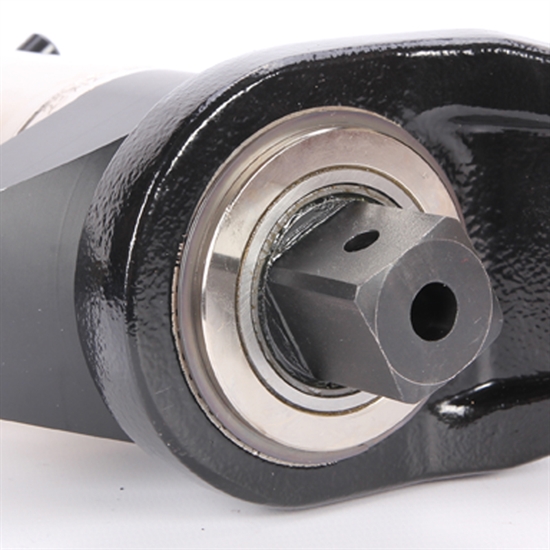

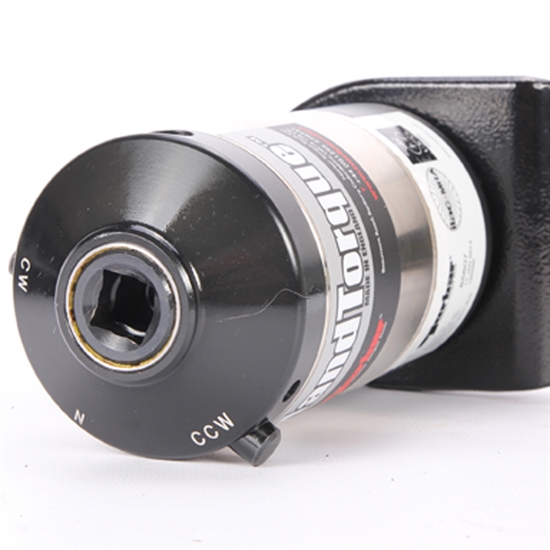

(Obsolete) Torque Multiplier, 25:1 ratio, Anti Wind-Up Ratchet, 1/2" In, 1" Out; HandTorque HTM-72-2000

The HTM-72-2000 torque multiplier has all of the features of the Compact Series but also has an integral torque transducer. When combined with a suitable display instrument, the system can apply torque to high accuracy without having to rely on a torque wrench and the multiplication ratio of the gearbox. Part number: 19108
EAN Bar Code: -
NATO number: -
Accuracy: ±1%
Operates between:
200.00 - 2000.00 N·m
145.00 - 1450.00 lbf·ft

  • Compact dimensions allow excellent access and easy, safe handling.
  • Anti Wind-Up Ratchet, for easier and safer operation.
  • A variety of alternative reaction styles are available for maximum versatility.
  • HT-72 features a light weight aluminium reaction arm.
  • Fitted with an Integral Electronic Torque Transducer
  • Guaranteed accuracy of +/-1% from 20% - 100% of capacity

  • Tool Weight: 3.5 Kg
  • Multiplication Ratio: 25:1
  • Output Square: 1"
  • Input Square: 1/2"
  • Reaction Plate Weight: 0.7 Kg
